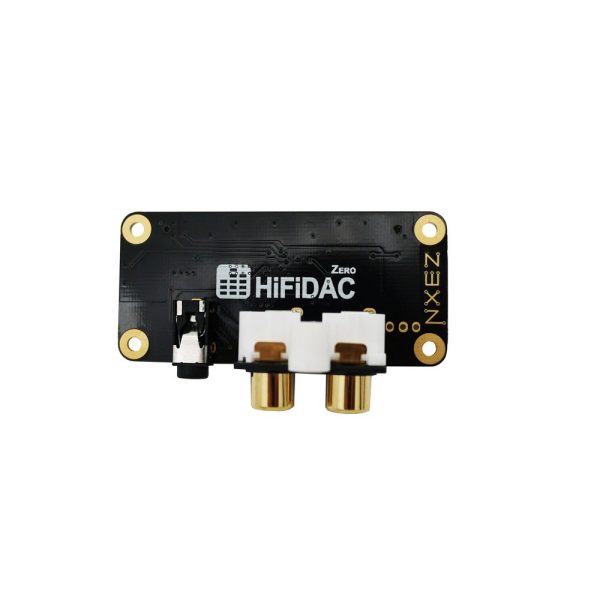

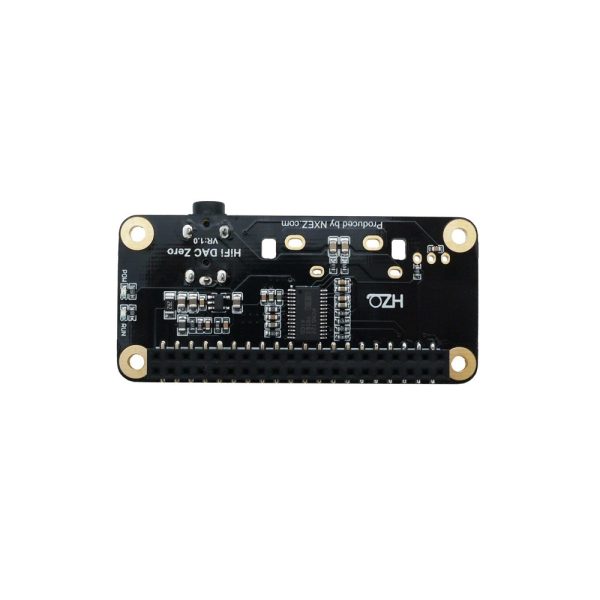

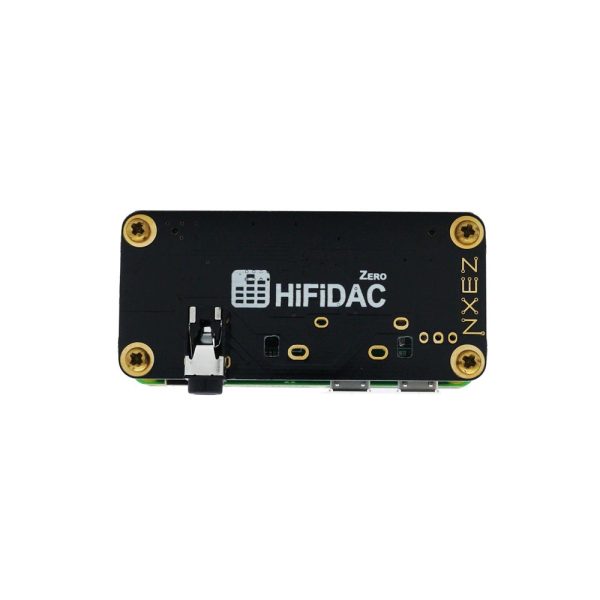

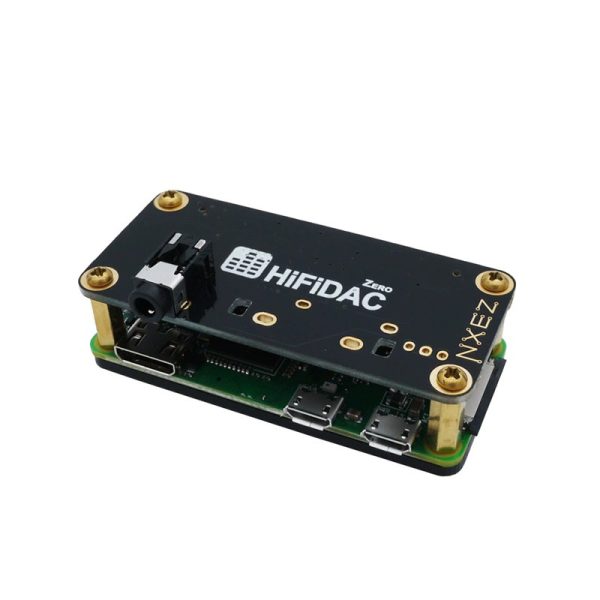

HiFi DAC Zero for Raspberry Pi

HIFi DAC Zero integrates TI’s professional-grade audio decoding chip PCM5122 and adopts the I2S interface standard to create a complete Raspberry Pi-based hardware audio decoding system. It supports powerful playback software such as Volumio, MoodeAudio, and OSMC, making it the ideal choice for quickly building a Raspberry Pi HiFi system! This product is fully compatible with the Raspberry Pi 5, 4B, 3B, 3A , 2B, and Zero series, as well as future Raspberry Pi models that comply with the same standard. For optimal usability, we recommend using it with a Raspberry Pi equipped with a Wi-Fi module. Features Premium Audio Decoding: Features TI’s professional-grade PCM5122 DAC chip, supporting 32-bit/384kHz high-resolution audio with 112dB dynamic range and ultra-low -93dB THD N distortion. Advanced Power Design: Incorporates ultra-low-noise voltage regulation and ferrite bead ground isolation technology to eliminate interference and completely remove ground loop noise. Dual Output Options: Standard 3.5mm headphone jack Pre-installed RCA jack output solder pads (supports amplifier/speaker connections) Direct I2S Interface: Plug-and-play installation on Raspberry Pi via native I2S bus (superior to USB DAC solutions) for direct digital-to-analog conversion. Operation Status Indicator: Built-in LED clearly displays DAC working status: Illuminated during active decoding Off when idle or powered down Premium Components: Uses authentic imported electronic components to ensure optimal performance and long-term reliability. Optimized Circuit Design: Fully compatible with Raspberry Pi ZERO form factor High-quality gold-plated PCB with impedance-matched traces Minimized signal reflection/refraction through optimized layout ZERO Version Features: Sleek hidden-component design for clean aesthetics Compact and elegant appearance Note: It’s not include a Raspberry Pi. Resources Get started with the HiFiDAC for Volumio Get started with the HiFiDAC for MoodeAudio
